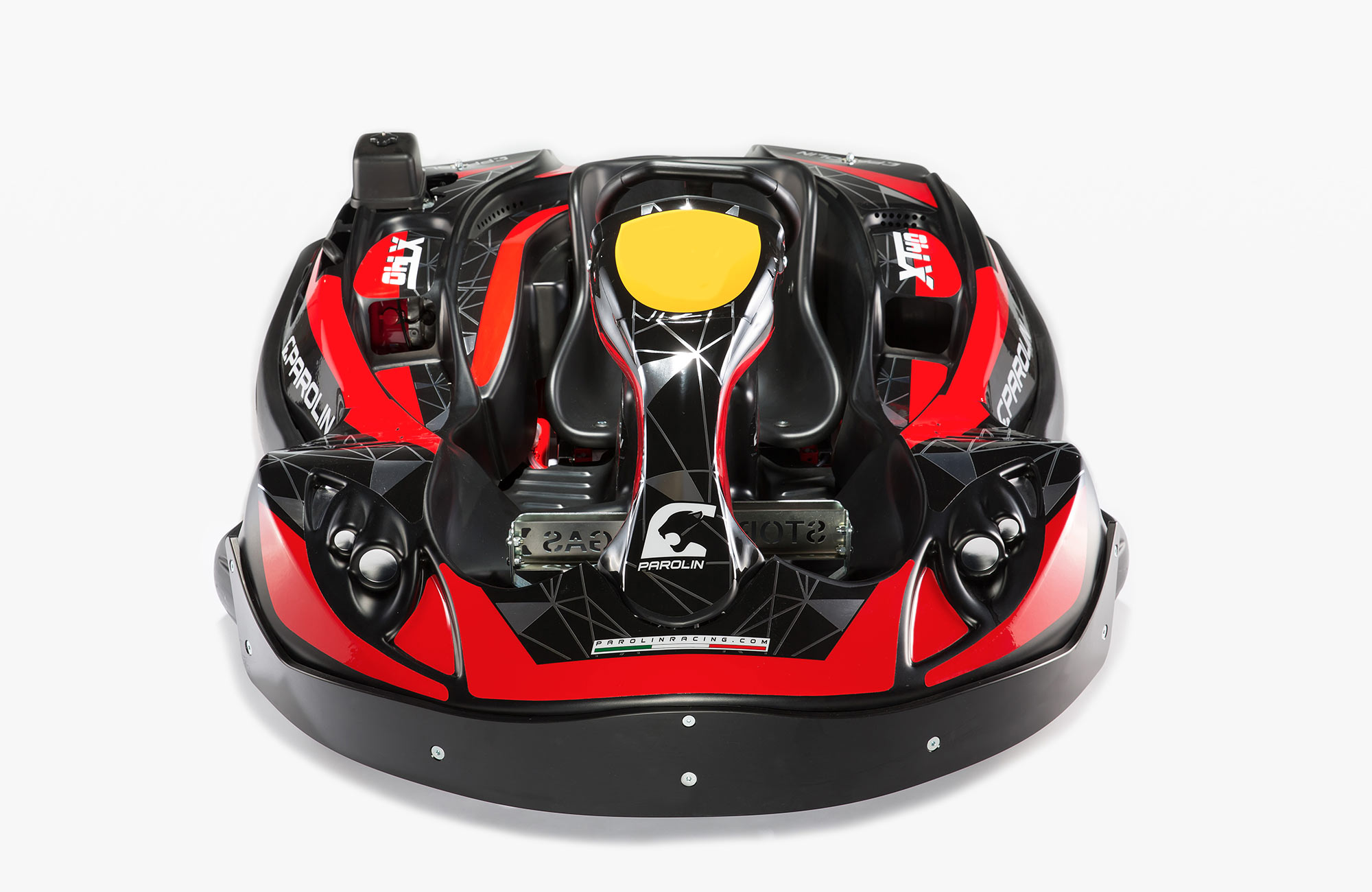

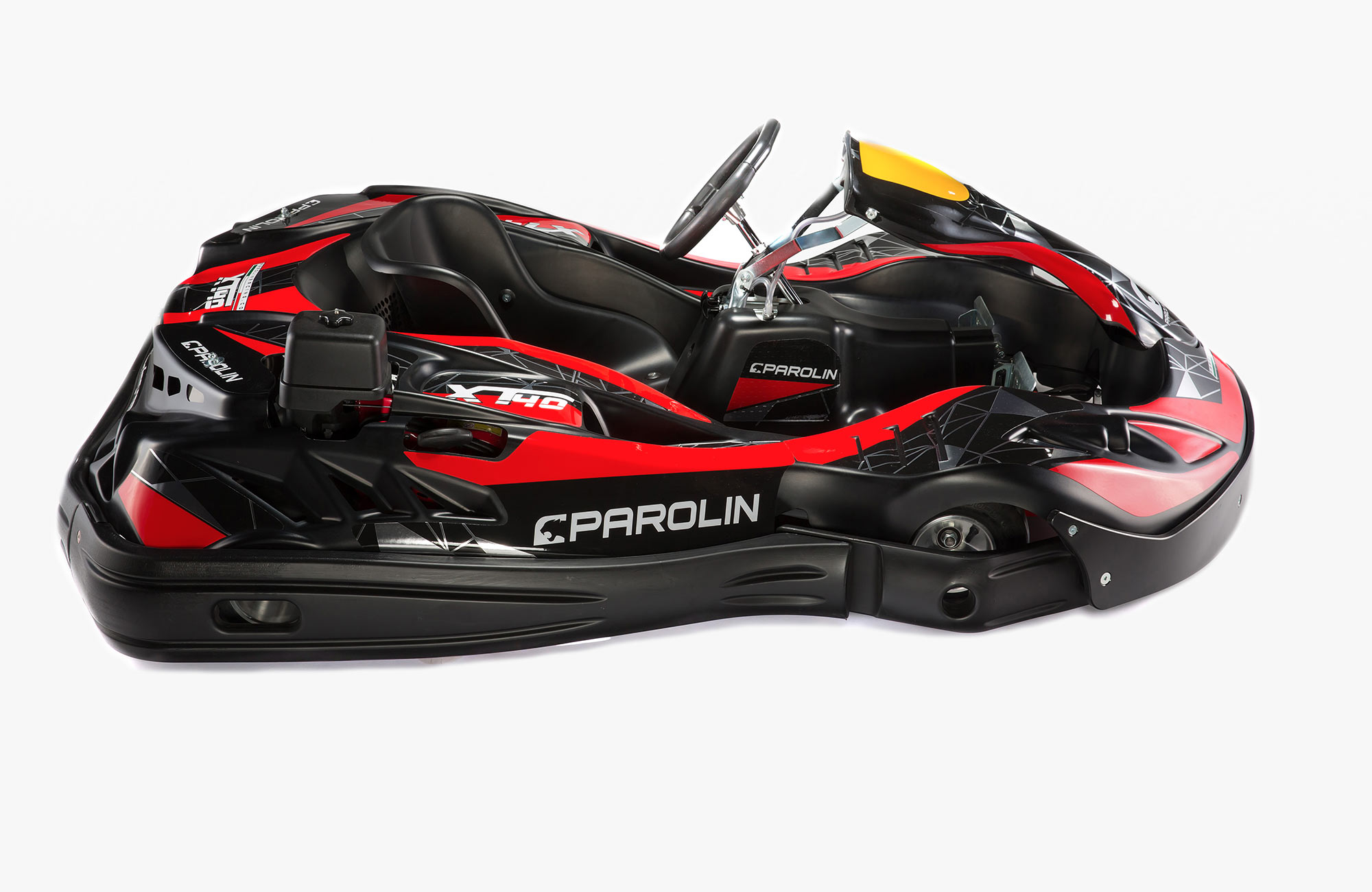

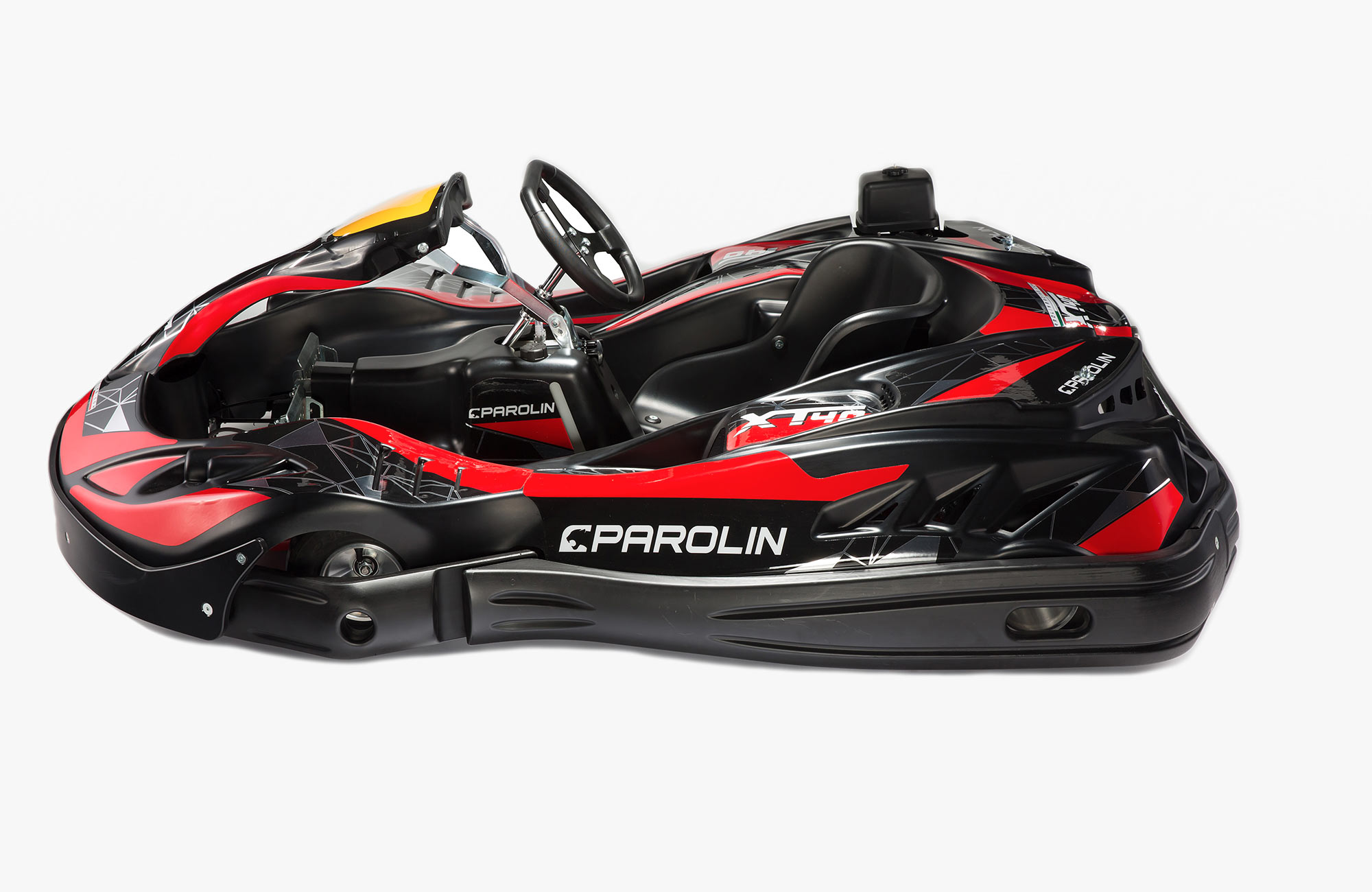

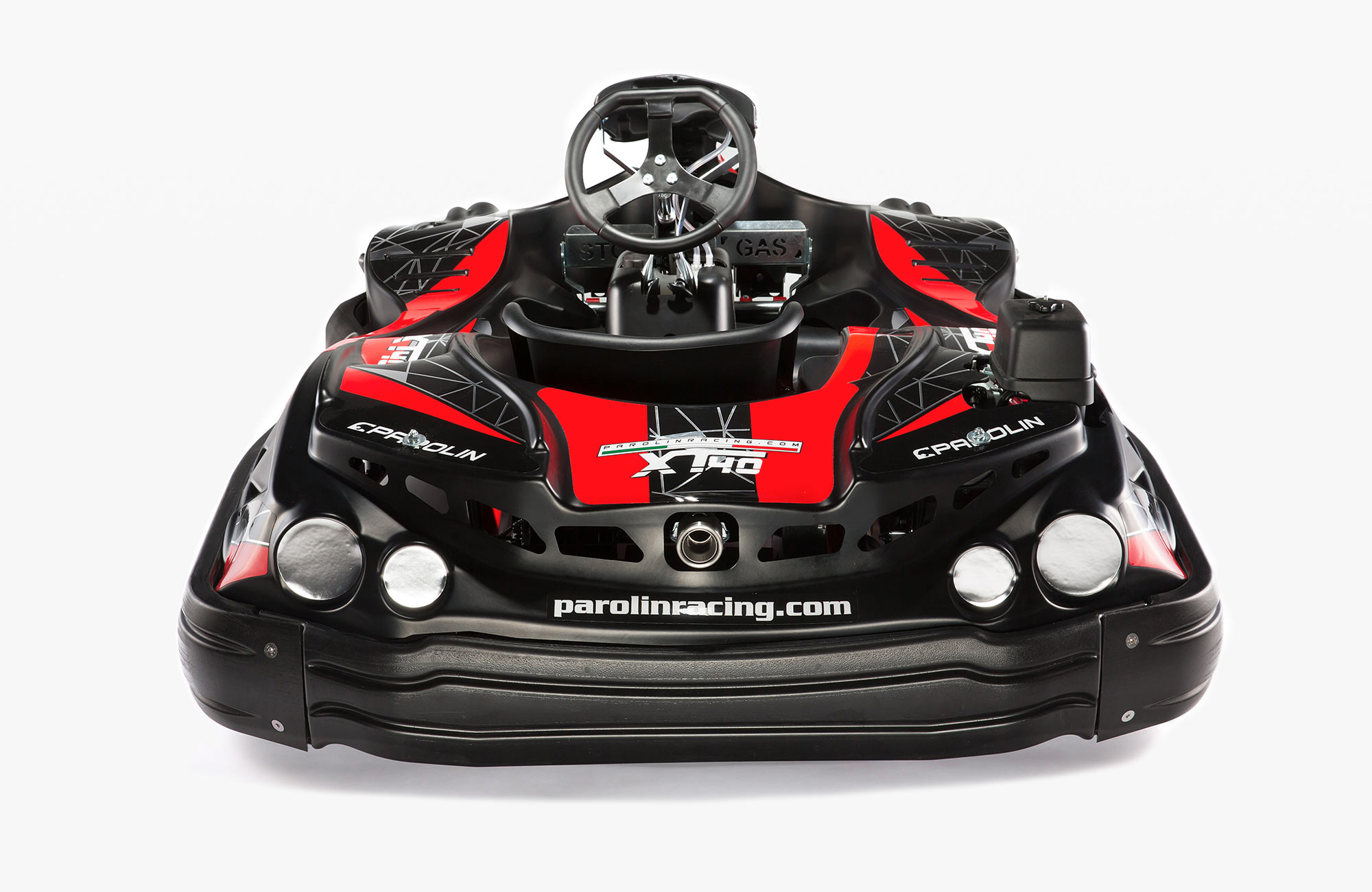

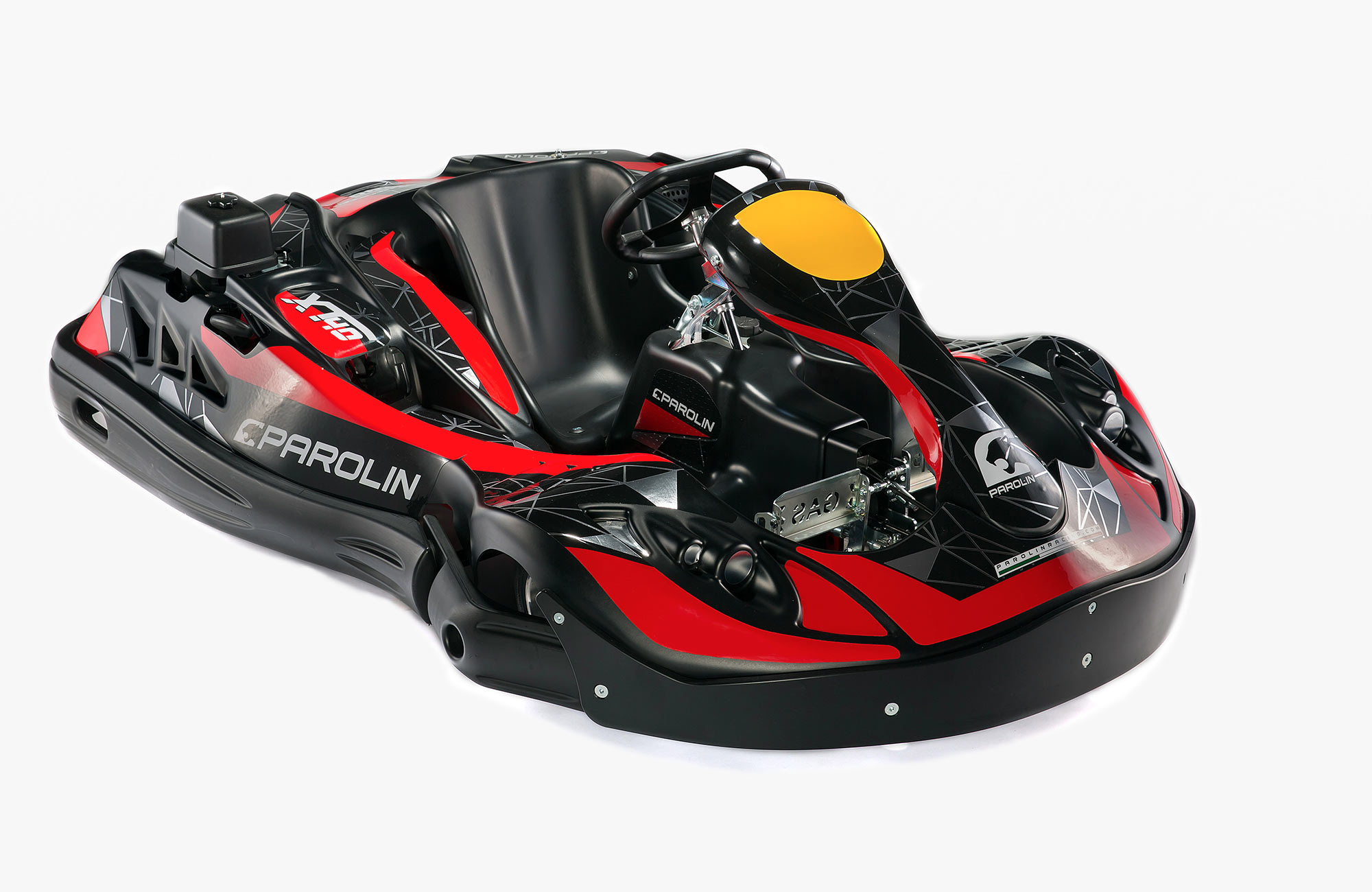

Several years of experience in rental karts led the Parolin technical department to build a kart capable to meet different customers' needs. The XT40 Line is the result of a long period of research and development, which is concretized nowadays in the XT40 Smart and XT40 Elite variants. Enjoyable to drive thanks to its comfort and lightness, the XT40 line presents a wide possibility of drive adjustment and an extreme ease of maintenance for the track owner.
Another remarkable feature of the XT40 is robustness, essential on current rental karts, but without compromising its good looking and aerodynamic aesthetics. Totally built inside Parolin facilities with fine raw materials and ultimate technologies, this product represents the apex of the Company's rental range.
| Parolin XT40 | |
|---|---|
| Chassis Code | 99KIXT_C |
| ø tubes | 40x2mm Cr-Mo |
| Pitch | 1060 & 1080 mm |
| Total Width | 1470 mm |
| Total Lenght | 2020 mm |
| ø axle | 40 x 1040 mm (std.) |
| Axle Bearings | 2 sb210/06 |
| Brake System | Self-Adjusting |
| Rear brake disk | 180 X 4 mm Steel (std.) 180 X 8 mm Steel (opt.) |
| Steering wheel | 320 mm (std.) |
| Seat | M or L Fiberglass (std.) Tillett covered (opt.) |
| Protections | Roll bar and security belts Bodyworks All-round special polymer bumpers |
| Options | |
|---|---|
| Engine | Briggs&Stratton Ex21 Subaru Ex27 Subaru Gx200 Honda Gx270 Honda Gx390 Honda Belt and pulley kit (Specify n. of teeth) Chain and Sprocket kit ( specify n. of teeth ) Steel chain sprocket from 28 to 33 teeth, 428 Steel engine sprocket from 12 to 15 teeth, 428 Eurostar chain (428 HR ) Gasoline pump kit |
| Protections | Anti-slip surface floor tray |
| Wheel | Wheel set 180 - 125 mm reinforced and heat treated aluminium with 17mm standard or 20 mm opt. Pin |
| Tires | Bridgestone 10x3.60-5 / 11x6.00-5 10x4.50-5 / 11x7.10-5 |
| Weight | Weight box kit 5 - 10 -15 kg |
340 MM RACING STEERING WHEEL
The 340 mm diameter racing steering wheel improves kart driving. Thanks to its increased diameter, it facilitates steering and reduces driving fatigue.
BRAKE LIGHT
The "Brake Light" system allows you to know when a kart is braking. This system has a light, positioned on the rear of the kart, which switches on when the brake pedal is pressed.
OFF BUTTON
Easy to reach in any situation, the shutdown button allows the kart’s engine to be switched off in emergency situations.
ROLL BAR AND SAFETY BELTS
The Roll Bar, as well as the seat belts, raise the driver's protection to the maximum level in the event of a collision or overturning.
REMOTE CONTROL
Remote control is a convenient tool that allows the adjustment of the speed of the entire fleet. The radio-controlled system increases safety and reduces the speed of the karts in any dangerous situations.
FIVE DIFFERENT ENGINE DISPLACEMENTS
The XT40 Elite can be equipped with five different engines: Honda GX120, Honda GX160, Honda GX200, Honda GX270 and Honda GX390. Honda engines performance ensure reliability and long maintenance intervals.
LEAD KIT
The lead kit uniforms the weight of all the karts in the fleet. This system gives the same kart performance levels for each driver.
ICE VERSION
The "Ice Version" kit includes raised set-ups, studded tyres and snow protection of rotating parts. The changes to the chassis have been specially designed to maintain excellent driveability of the kart on icy slopes.

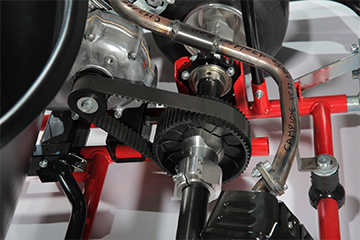

TRANSMISSION BELT
The belt drive allows longer maintenance intervals compared to the chain.

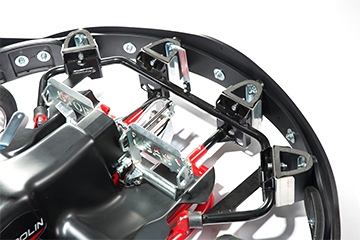

FRONT ABSORPTION SYSTEM
The front absorption system cushions frontal blows against the kart’s barriers. This safety feature reduces the blows received by the driver.

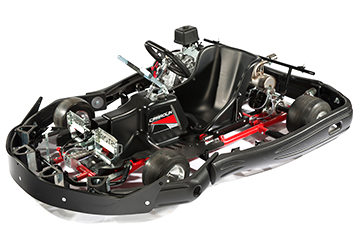

EXTERNAL FAIRINGS
The external fairings give all-round protection of the kart against any types of blows

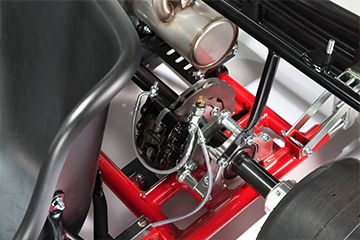

HYDRAULIC BRAKES
The hydraulic brake, derived from racing, ensures repeated braking without overheating the disc, which raises the vehicle’s safety level.
